Cepek 17" wheel Hidden line Conversion

16.5" Wheel Instructions

If this site has helped you consider a Donation. Donation Info

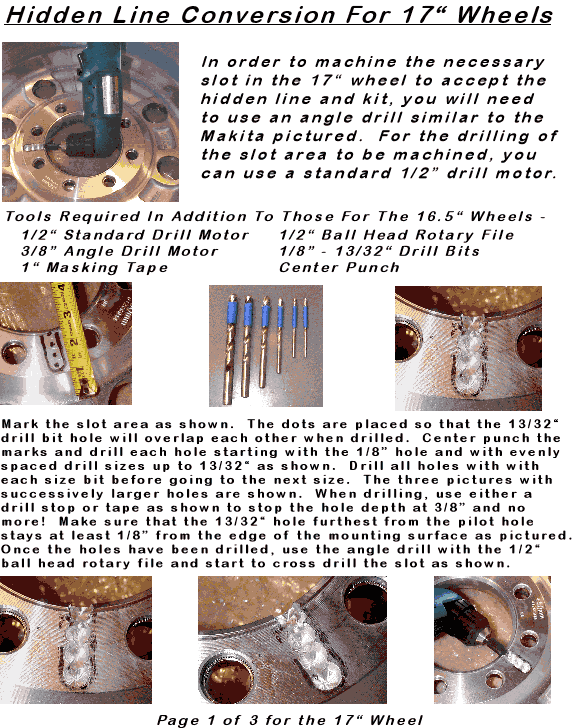

17" Hidden line

If you have a Milling Machine:
Basically, you need 1/2" ball mill cutter, and the slot should be a minimum of 0.400" deep and a maximum of 0.500" deep. Also you need to measure the length of the slot, as it needs to be just the length that it is cut on that wheel and no longer.
