Mounting the Detachable Head

© Copyright 2000 - 2008 Chuck Kopelson 06/27/2000
Updated December 4, 2008

If this site has helped you consider a Donation. Donation Info

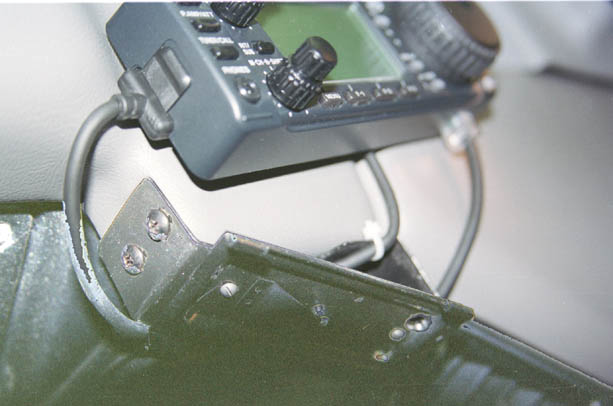

You are looking at a picture of two brackets. The one in the rear I made from a piece of aluminum cut from a piece of angle bracket. It is attached to the upper part of the dash over the tach. Attached to the rear bracket is the Icom head mounting bracket. This bracket will allow you to detach the head and take it with you. The hole you see drilled in the Icom bracket is so I can stick a screwdriver through and tighten the rear bracket. The Icom head is just resting on the dash. I routed the Icom control cable from the console down - behind the center windshield trim.

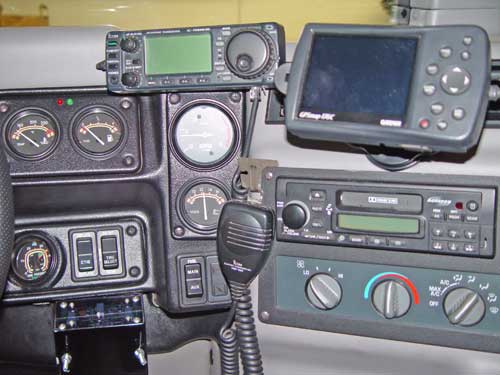

I mounted the microphone holder on the corner of the Monsoon radio trim. On the right is my Garmin 176c GPS.
